Why Memory Leak Detection Shouldn’t Run on Your Device: Building LeakLens for Android Studio

Why Memory Leak Detection Shouldn’t Run on Your Device

How LeakLens moves Android heap analysis out of the app process and into Android Studio with a dual-layer model of static analysis and runtime inspection.

You are in the middle of a refactor, your test device lights up, and a familiar notification appears:

4 retained objects, dumping heap.

The report is useful, but the interruption is not. You pick up the device, inspect the notification, try to remember the class names, then jump back into Android Studio to find the source.

That debugging loop is exactly the problem this article addresses. The core question is simple: why is the tool that finds memory leaks running inside the same application process you are trying to debug? [page:1]

That question became LeakLens, an Android Studio plugin that moves memory leak analysis into the IDE instead of embedding an SDK inside the application. [page:1]

Table of Contents

1. The Problem with On-Device Leak Detection

The source article makes a clear point: traditional tools like LeakCanary are powerful, but they come with a runtime dependency, consume device resources, and split the debugging experience across the device and the IDE. [page:1]

That split creates friction. The leak is detected on the phone, but the actual investigation and fix happen in Android Studio. [page:1] Every context switch increases the chance that the issue is postponed or treated as “later work.” [page:1]

The article frames the desired workflow in three constraints:

  • No extra SDK dependency in the application. [page:1]
  • No leak-analysis workload consuming app resources. [page:1]
  • No forced jump out of the IDE to understand a leak. [page:1]

2. Moving Heap Analysis to the Workstation

LeakLens changes the execution model by moving the expensive analysis to the developer machine. Instead of asking the app process to inspect a large heap dump, the plugin uses the workstation to perform the heavy work. [page:1]

According to the article, LeakLens uses ADB, ddmlib, and Android SDK tooling to trigger a heap dump, pull the generated .hprof file from the device, and analyze it locally using Shark. [page:1]

Device → Trigger heap dump → Pull .hprof → Analyze on workstation → Review results in Android Studio

That is the key shift. The mobile device remains lightweight, while the IDE takes over the expensive part of analysis. [page:1]

3. The Two-Layer Detection Model

One of the strongest ideas in the post is that runtime analysis alone is not enough. Runtime inspection is reactive: you must run the app, navigate to the right state, trigger the leak, and then inspect the heap after the fact. [page:1]

The article turns that limitation into a broader architecture: a dual-layer approach that combines prevention and detection. [page:1]

  • Layer 1: Static analysis catches common leak patterns before the app runs. [page:1]
  • Layer 2: Runtime heap analysis handles complex leaks that only appear in real object graphs. [page:1]

This is the right framing because it treats memory leaks as both a coding-pattern problem and a runtime-behavior problem. [page:1]

4. Layer 1: Static Analysis with UAST

The first layer uses UAST to analyze Kotlin and Java source directly inside the editor and detect common leak patterns before code ever reaches a device. [page:1]

The article lists several examples:

  • Activity references stored in static fields. [page:1]
  • Context objects retained in singleton instances. [page:1]
  • Incorrect use of lifecycle-aware components. [page:1]
  • Listener and callback retention patterns. [page:1]

This is a strong product decision because it shifts obvious mistakes left. Instead of waiting for a heap dump, the developer sees the issue while writing code. [page:1]

5. Layer 2: Runtime Heap Analysis with Shark

Static analysis cannot catch every leak. The article specifically points out complex object graphs, third-party libraries, asynchronous callbacks, and framework interactions as cases that still require runtime inspection. [page:1]

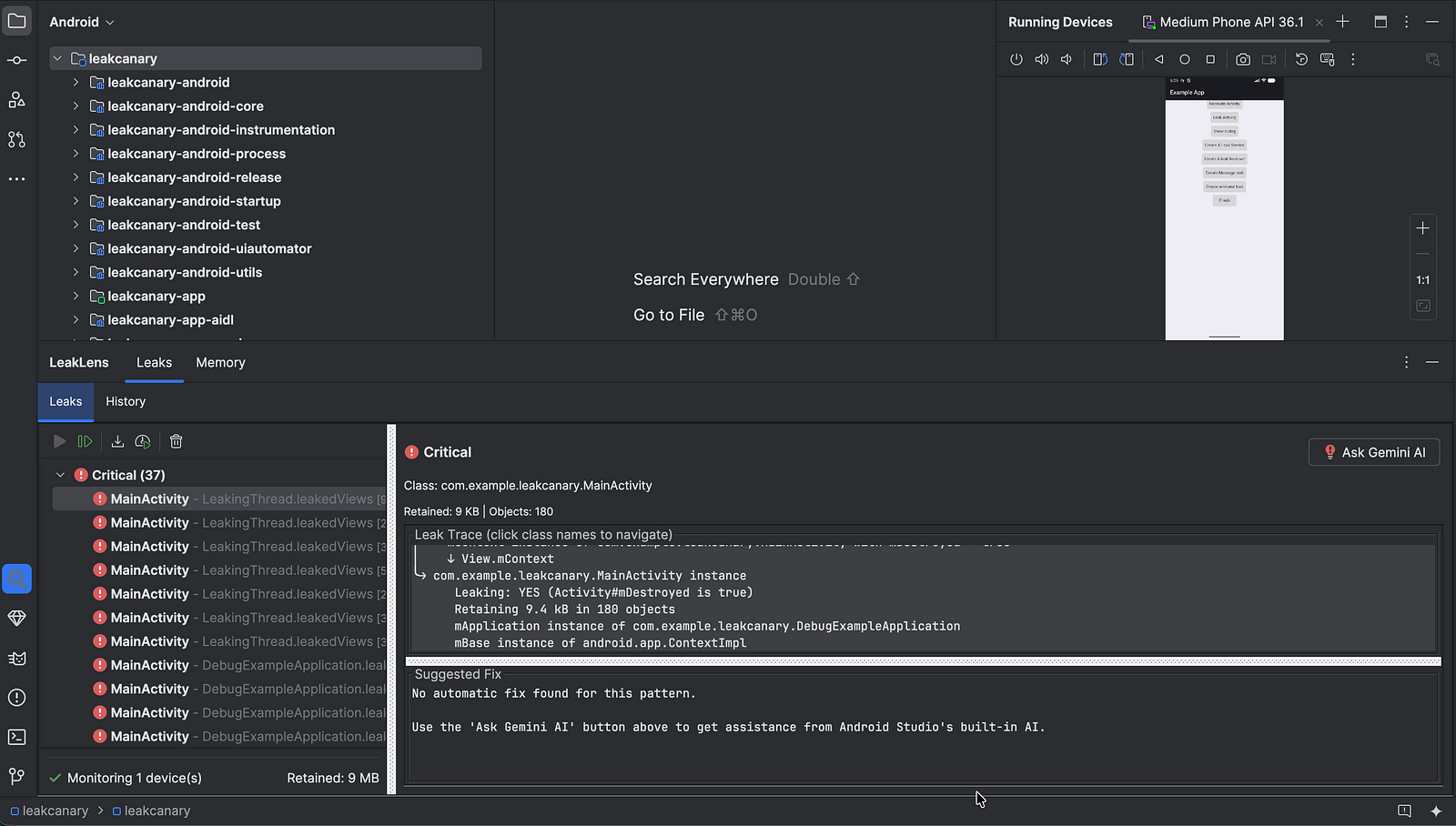

For those situations, LeakLens uses Shark, the same heap analysis engine used by LeakCanary, to produce retained object reports, leak traces, reference chains, retained size metrics, and source navigation from the IDE. [page:1]

That gives developers a unified workflow: preventive feedback in the editor and deep runtime evidence in the same tool window. [page:1]

6. The IntelliJ Plugin Engineering Challenge

This section is one of the most valuable parts of the article because it shows a real platform-level engineering issue. The post explains that the plugin originally followed a Kotlin-first architecture, but IntelliJ Plugin Verifier started reporting compatibility violations on newer platform releases. [page:1]

The root cause was not direct API misuse. It was Kotlin-generated bridge methods interacting with IntelliJ interfaces whose newer versions contained internal APIs related to icons, anchors, and extension metadata. [page:1]

The solution was to move several extension-point implementations back to Java, creating a small Java-Kotlin hybrid architecture that avoided those generated bridge-method issues and restored compatibility. [page:1]

That is a genuinely useful lesson for plugin developers: the most modern stack is not always the most stable one when platform compatibility tooling is involved. [page:1]

7. Turning Leak Reports into Fixes

The article also argues that finding a leak is only part of the problem. Understanding why it happened is often harder, especially when framework references, listener chains, and lifecycle interactions create non-obvious retention paths. [page:1]

To reduce that friction, LeakLens includes an AI-assisted analysis workflow. The plugin builds a structured request containing the reference chain, retained object information, retained size metrics, and relevant source context before generating suggestions. [page:1]

That design is important because it avoids the usual failure mode of sending raw traces without context. The richer reasoning input improves the quality of explanations and code-level fixes. [page:1]

8. Making It Practical for Large Codebases

A major adoption problem for memory tools is noise. The article directly addresses the common scenario where a mature codebase already contains hundreds of known leaks, making the next new issue hard to notice. [page:1]

LeakLens handles this with a VCS-friendly baseline system: teams generate a baseline file, commit it to source control, and treat existing findings as known technical debt while only surfacing newly introduced leaks and regressions. [page:1]

That is exactly the right enterprise move. It turns memory analysis from a one-time cleanup exercise into a guardrail for future development. [page:1]

9. Why This Workflow Matters

The conclusion of the source article is sharp: memory leaks are rarely caused by a lack of tools; they are more often caused by friction. [page:1] Every context switch, every manual investigation step, and every delayed fix increases the chance that a leak reaches production. [page:1]

That is why the host-side model is compelling. Static inspections help prevent common mistakes before execution, while workstation-based heap analysis handles the complex cases without overloading the application process. [page:1]

Together, those two layers make memory health part of the daily development loop rather than a separate debugging ceremony. [page:1]

FAQ

Why shouldn’t memory leak detection run on the device?

The article argues that on-device leak detection adds runtime dependency overhead, consumes device resources, and creates a fragmented workflow where detection happens on the device but investigation happens in the IDE. [page:1]

How does LeakLens work?

It uses ADB, ddmlib, and Android SDK tooling to trigger a heap dump, pull the resulting .hprof file, and analyze it locally with Shark inside Android Studio. [page:1]

What is the dual-layer approach in LeakLens?

It combines static source-code analysis with UAST for prevention and runtime heap analysis with Shark for complex leaks that require real object-graph inspection. [page:1]

Why is the IntelliJ Plugin Verifier section important?

It shows a real compatibility issue caused by Kotlin-generated bridge methods and explains why parts of the plugin were moved back to Java to support newer IntelliJ platform versions. [page:1]

Try LeakLens

This guide is part of the Android Quality Suite.
